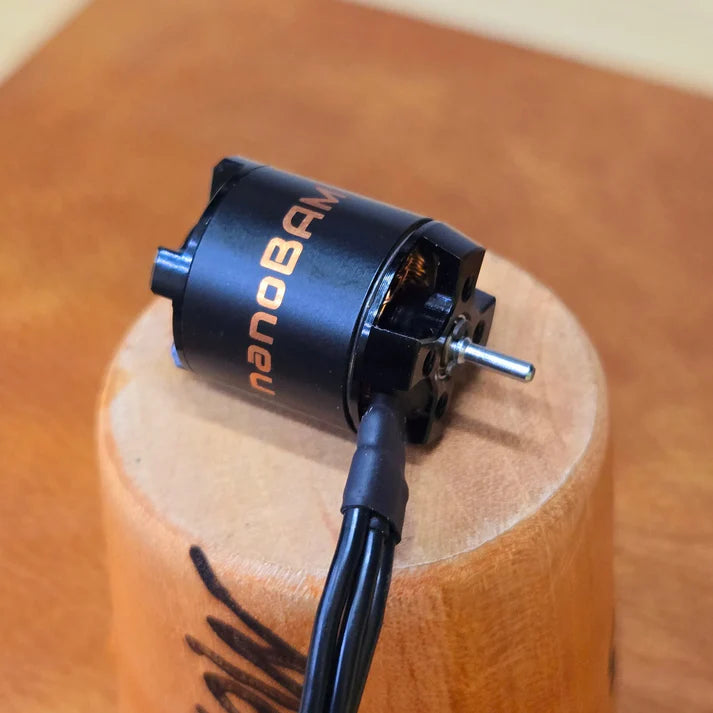

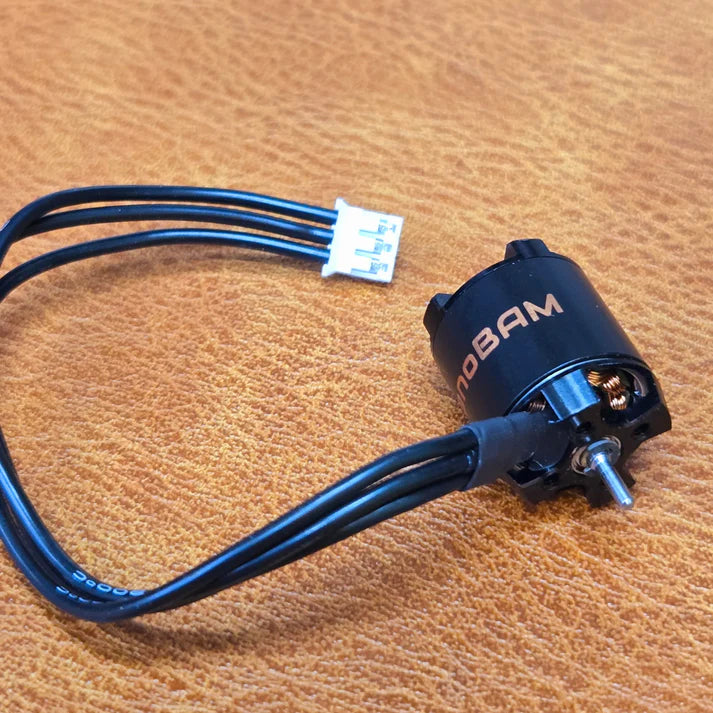

Mofo RC | NanoBAM 3500Kv Brushless Motor With Mod.3 11T gear

The NanoBam is our most popular nano/compact sized brushless motor. With more torque and a small speed increase over our NanoBeast, it is the perfect all-around setup for most vehicles. With our LCG mount, you can often fit extras such as interiors in a small body. Or, using our Forward Facing Mount, pioneered by Mofo RC, you can put the weight up front on the vehicle. This motor is also offered in various combos with the motor mount and an optional Mofo RC Rockwolf ESC.

Please note that it is a tight fit on a stock SCX30 chassis with the stock receiver combo. The esc/receiver combo does not have a throttle port so you must use an aftermarket receiver and ESC setup. Use at your own discretion.

Click here for the Forward facing mount

Click here for the LCG Mount

Select motor only or with steel gear installed Please read up on the difference of the Mod.3 vs Mod.5 pitch. Mod.3 is the standard pitch for the scx24 transmissions

Mod.3 11T pinion gear - standard (SCX30 Direct Fit)

Mod.3 14T pinion gear - slight speed boost

Mod.5 8T pinion gear - standard

Specs and Dimensions
KV 3500
Voltage 2-3s Lipo
Bolt Pattern 9mm
Poles 12 Pole, 9 Slot
Stator Diameter/Length 12mm x 11mm
Shaft Diameter 1.5mm (Accepts Press-Fit Pinions Only)
Case Diameter/Length 16.3mm x 21mm
Weight 16 grams
Wire Length 125mm
Connector Standard PH2.0 3 pin
