Boom Racing

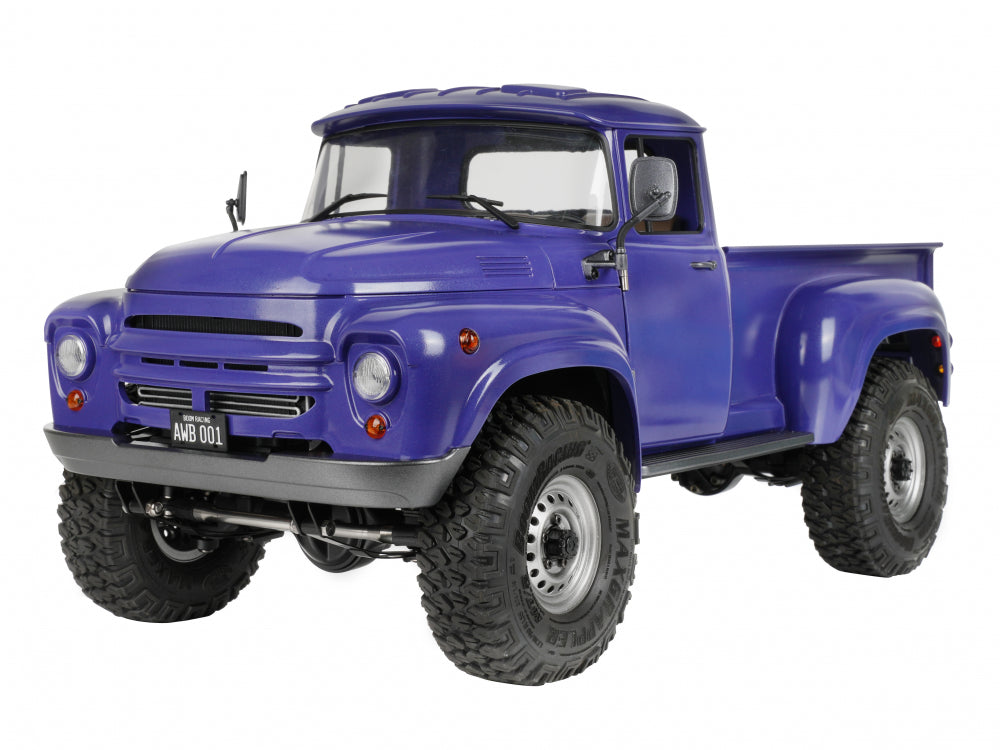

BRX01 AWB Adjustable Wheelbase 1/10 4WD Radio Control Chassis Kit With ZIL Pickup Hard Body (Recon G6 Certified)
BRX01 AWB Adjustable Wheelbase 1/10 4WD Radio Control Chassis Kit With ZIL Pickup Hard Body (Recon G6 Certified)
SKU:BR8010
Impossible de charger la disponibilité du service de retrait
BRX01 AWB
Conception de châssis compacte, à profil bas et à garde au sol élevée
Grand boîtier récepteur étanche avec joints en silicone
Plaque de montage ESC en aluminium pour une configuration électronique polyvalente
Pneus MAXGRAPPLER™ de 1,55" pour un look à l'échelle équilibré et des performances de rampement
Boîtier de transfert anti-couple en aluminium B2X™ avec engrenages HD (compatible OD)
Plaque de protection à garde au sol élevée avec glissières en nylon moulées
Arbres de transmission CVD centraux KUDU™ HD
Amortisseurs KUDU™ à l'échelle 70 mm avec suspension à ressorts à lames
Billet aluminum 7mm chassis rails
Système de pivot d'essieu et de bagues en laiton BRX80 PHAT™ mis à jour

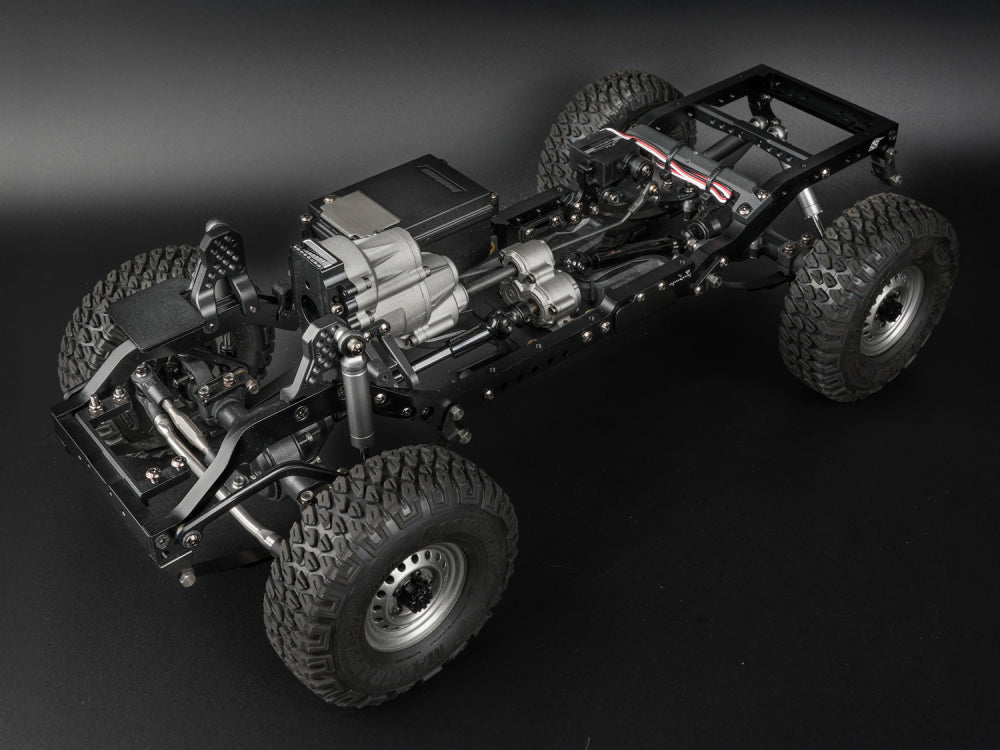

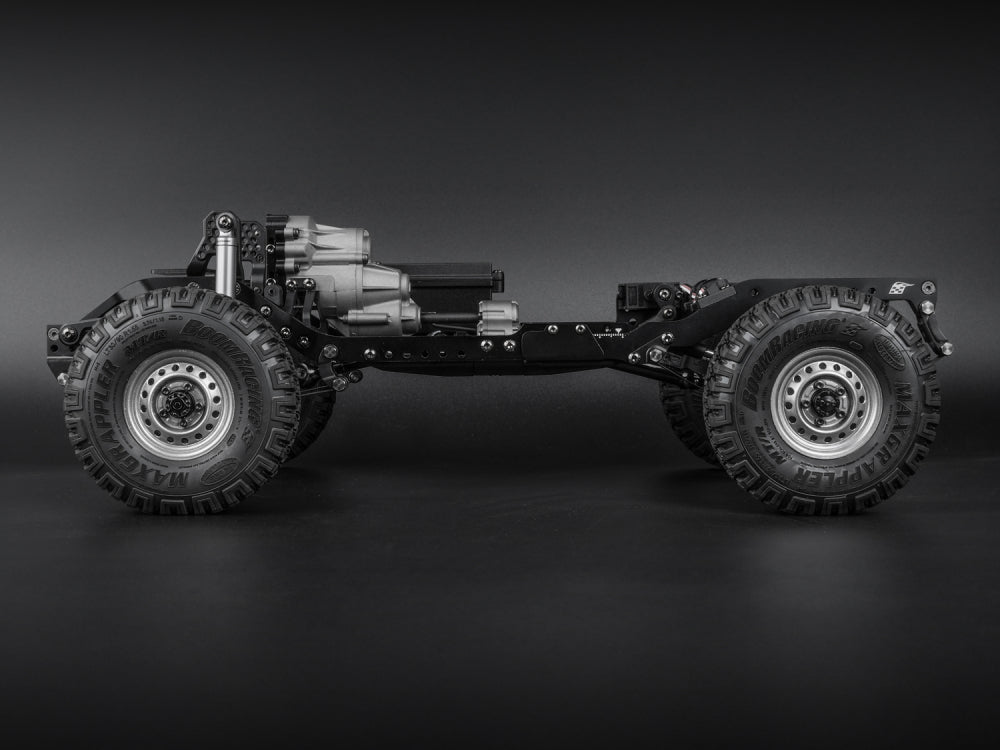

Chassis Features
| PARTS | SPECIFICATIONS | ||
|---|---|---|---|
| Transmission | BCF2 2-Speed | Length | 401mm / 15.79" |
| Transfer Case | B2X (Overdrive Ready) | Width | 199mm / 7.83" |
| Axles | BRX80 PHAT Straight Axle w/ New Kingpin & Brass Bushing Design | Height | 133mm / 5.24" |
| Axle Shaft | BADASS HD Steel Front Universal and Rear Drive Shaft | Wheelbase | 267mm / 10.5" to 287mm / 11.3" 287mm / 11.3" to 307mm / 12.1" (with optional XL rear rails) |
| Center Shaft | KUDU HD CVD 80-90mm (Front) 84-99mm (Rear) | Track Width | 169mm / 6.65" |
| Suspension | Full Leaf Spring with KUDU Shock Absorber | Axle Clearance | 29.5mm / 1.16" |
| Rails | Billet Alum Rear Rails (7mm) | Skid Clearance | 57mm / 2.45" |
| ESC | Forward (Alum) | Ground Clearance | 57mm / 2.45" |
| Tires | 1.55" MAXGRAPPLER Gekko (Black) Compound 3.74"x1.18" (95x30mm) | Approach Angle | 58.3° |
| Wheels | 1.55" 16-Hole Classic Steelie Reversible Beadlock Wheel | Departure Angle | 57.8° |
| Wheel Hub | XT504 V2 | Breakover Angle | 49.3° |
| Drive System | Full-Time Shaft Driven 4WD | Shock Length | 70mm |
| Steering | Chassis Mounted Servo | Weight | 1830g / 4.0 lbs |
| Skid Plate | Stainless Steel | Motor Size | 540 / 550 (not included) |
| Center Skid Slider | Molded Nylon | Gear Pitch | 12T 32P Pinion/Spur, 48P T-Case |
| Side Skid Plate | Molded Nylon | ||
| Rod End | KUDU Rod End / BADASS Stainless Steel Pivot Ball | ||

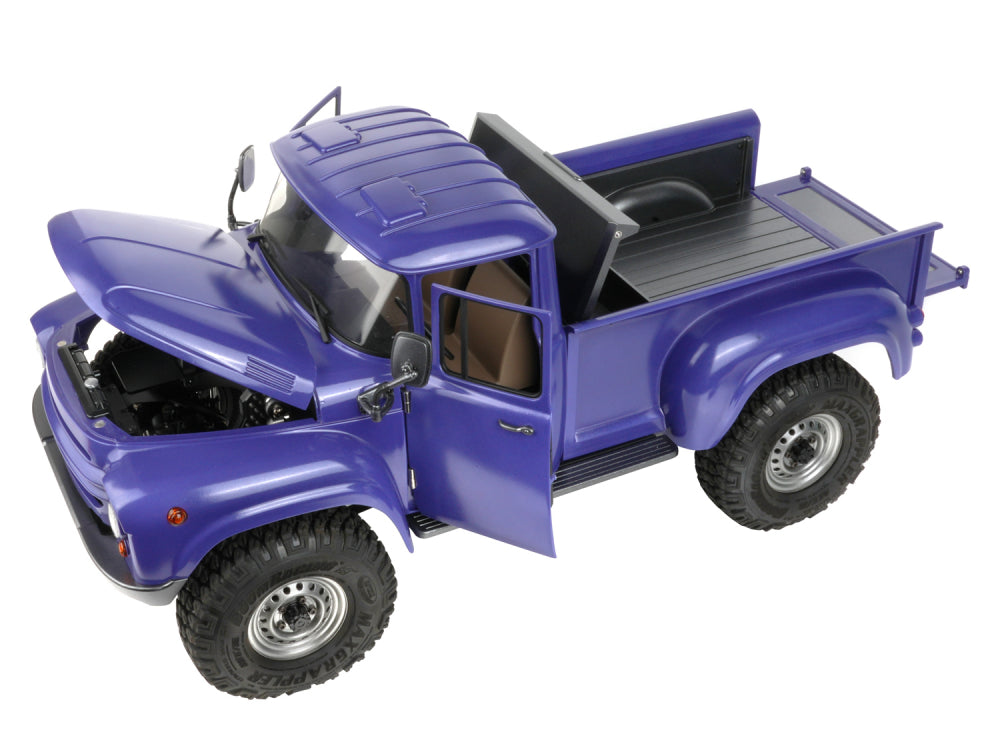

Body Features
| PARTS | SPECIFICATIONS | ||
|---|---|---|---|
| Material | Molded ABS hard body | Length | 425.5mm / 16.75" |
| Functional | Hood, doors and tailgate | Width | 200mm / 7.87" |
| Construction | Separated cab & bed | Height | 148mm / 5.83" |
| Interior | Full ABS interior with dash, floor panel, seat | Weight | 790g (finished and painted) |
| Battery Box | Included | Battery Box Size | 126 x 50 x 37mm (4.96" x 1.96" x 1.45") |
| Bumper | ABS (Front & Rear) | ||
| Mirror | Rubber | ||
